Revamping Workshop 88

Spring is in the air, flowers are emerging, and Glen Ellyn is slowly climbing out of what has been an incredibly trying winter.

The new season has inspired us to take a new look at Workshop 88 and revamp our main room. While it’s a homey basement that holds many fond memories, members have been encouraging me to come up with some new ways to change the space around to be welcoming to new members. I wanted to post some photos of the current layout so that we can work on rearranging some things.

Workshop 88 members spend so much time working on their projects and discussing new ideas that they don’t pay much attention to the space around them; but space is important. Space communicates what we value, inspires our creativity, and develops our sense of belonging. Therefore, it is really important that we spend time recreating Workshop some in order to make our space more inviting.

What do you think we should do to revamp Workshop 88? Maybe some color? Reorganizing the layout? Please comment with your ideas!

photo 1 photo 2 photo 5

Share

THOTCON 0×5 Badge Revealed

Link

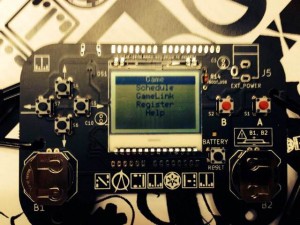

photo1 (3)

THOTCON  is the annual, small venue, hacking conference based in Chicago IL, USA. THOTCON is a non-profit, non-commercial event looking to provide the best conference possible on a very limited budget.

For the past 2 years Workshop 88 has been honored to design and produce the electronic attendee badges for the conference as a service to the local community.  The badge crew this year consisted of: Paul Reich, Bill Paulson, Karl Knutson, Zach Cassity, Russell Lankenau, and Rudy Ristich

This year’s badge was inspired by portable gaming systems from the past and featured  102 x 64 pixel graphic LCD screen and a push button interface. Once again, the badge features an Atmel AVR based microcontroller. The badge used nearly every byte of the 32k available SRAM on its Atmega32u4 chip.  The software consisted of a Break-out style game which participants could play to passtime, a complete schedule of talks and labs for the day long conference,  and the ability to patch into arcade panels hosted in the Hacker Village, and a few surprises for discovering inside.

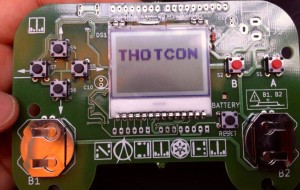

photo1 (2) photo3

Just like the THOTCON 0×4 Badge, the 0×5 Badge is compatible with the Arduino open hardware programming environment and can accept standard Arduino shields. This means the badge can be easily reused and repurposed to power any sort of project. An improvement from last year’s badge is that no additional parts need to be added; conference goers can simply plug the badge into their laptop once burning a bootloader to reprogram it, encouraging easier exploration and badge hacking.


The badge is designed to be completely open hardware and software.  Workshop 88 would like to thank the open source hardware and software community especially: Arduino, Oliver Kraus and other contributors to the U8glib graphics library, Dean Camera for the LUFA Project, and last, but far from least: Twisted Traces, our local assembly partner in Elk Grove, IL.

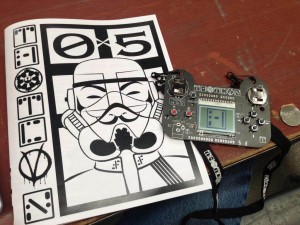

photo4photo2 (2)

Workshop 88 will be holding a badge hacking contest throughout the month of May.  Judging will consist of a panel from Workshop 88 and the THOTCON crew.  Interested contestants can register on the badge website: http://badge.workshop88.com

Full details on the badge specifications and firmware will be released on May 1st in conjunction with the opening of the badge hacking contest.

Share

IOLab: The Pocket Physics Lab

The University of Illinois has developed a new device called IOLab which allows students to explore physical principles and concepts in one all-in-one unit which can easily fit in a pocket. Andrew, a physics professor at Joliet Junior College, has high hopes for the device in the classroom and beyond. IOLab features a variety of sensors, many of which can be found in a physics lab, in a portable and affordable form. Built-in wheels record the displacement of the unit, measuring acceleration and velocity. It also features a force sensor, a barometer to measure air pressure, as well as a light, magnetic, temperature, and sound sensor.

IMG_2742Andrew is excited about IOLab because he hopes that the device will work in a way that engages our particular population of students today. It’s a great kinesthetic learning tool, encouraging creative exploration of physics in a non-threatening way. He mentioned that an additional benefit is that it has expansion capabilities to discover other yet to be determined inputs and outputs. Due to the utility flexibility of the device, it can be used in a variety of settings and serve a plethora of purposes. Andrew has a lot of imaginative ideas of how to use the device in his classes; one thought he has is to take some data, give it to the students and tell them to recreate the graph and figure out the experiment.

Share

Upcycled LCD Entertainment Center… and Paper Elephants

This past Thursday night gathering at the Workshop, Rick Stuart showed up all smiles- though I’m not sure if this was due to his enthusiasm to show off his new gadget or in anticipation of Rachel’s shortbread which had been announced earlier via email.


Rick with his entertainment center

Rick has built a personal entertainment center which has the capacity to display high-defintion videos and music through an upcycled touch-screen LCD. Rick had recovered some of these screens from his previous workplace and had decided to put them to use in a new project. He has created a running loop for the system to operate: he utilized a Raspberry Pi running OpenELEC in order to run XBMC (a media center) and connected an HMDI cord to a LVDS adapter board. The adapter runs to the LCD, which is connected by USB to the Raspberry Pi. For sound, the system will be attached to speakers. Files are stored on an SD card inserted into the Raspberry Pi, and streamed files are accessible through connecting an ethernet cord.

By using HDMI instead of the normal video output connection, Rick was able to make his display high-definition. Rick said that a great advantage about his system is that he was able to essentially create his own media center out of materials he already had on hand plus the low cost of a Raspberry Pi.

Meanwhile, Zach showed me how to create very intricate origami elephants using printer paper. While there’s no hope of me recreating one on my own, I thought it was important to highlight how awesome they turned out.

Processed with VSCOcam with f2 preset

Share

How Many Hackers Does It Take To Change an Electric Rose?

IMG_20140213_235339

Borg Bouquet

Somewhere in the depths of downtown Glen Ellyn, hackers and crafters alike have come out of the woodwork to conquer Rachel Hellenga’s latest project: creating LED roses out of duct tape.
IMG_20140213_220457

Rachel is developing a kit for her website, Conducti.com, to help people combine technology and crafts. She requested beta-testers and lucky volunteers Rudy Ristich, Mike Emerick, and IMG_20140213_220239me were peeled away from their projects to tap into their crafty sides. Girl Scout Leaders and educators alike have been clamoring for Rachel’s electric rose how-to guide, so the pressure was on for us to come up with fast solutions to any problems which would arise from her guide. We followed Rachel’s step by step tutorial for the rose-creation from her blog post for Makezine to ensure all directions were coherent and effective.


Throughout the process, several problems arose for our two all star techies, who quickly solved the problems by applying creative solutions. I suffered from a few misreadings and ill-placed conductive tape pieces. One difficulty arose from keeping the two AAA batteries (which were connected with a tightly rolled piece of paper) together to maintain a strong connection. Rudy used his tech-pertise to offer an ingenious solution through the use of rubber bands and duct tape.

The use of duct tape provided a new learning opportunity; the tables were turned as I was able to contribute to troubleshooting by assisting my hacker friends in the art of duct tape  application which I had gleaned from my many years of experience in paper crafts. In the end, we all finished with fabulous electric roses and were able to help Rachel make necessary changes to her tutorial before it’s published in a kit.
